Description

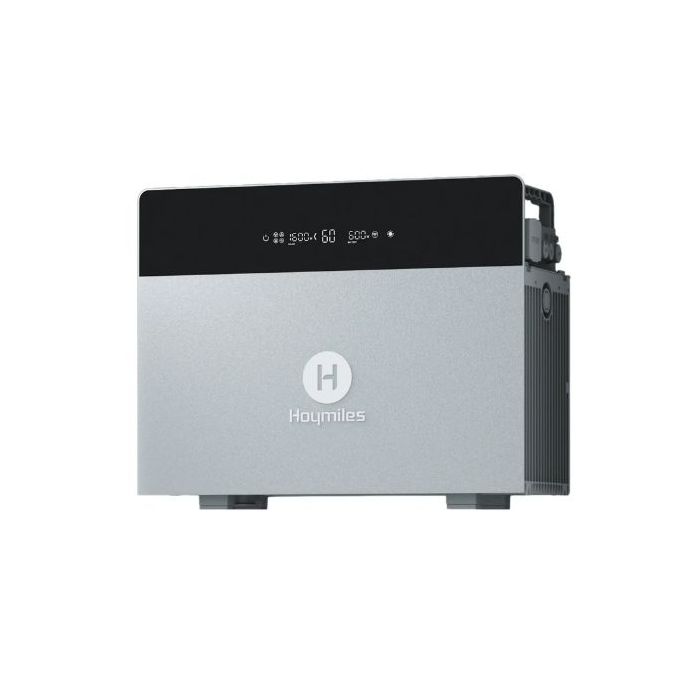

Balcony Solar Storage Hoymiles HiBattery HB-4020-X
The Hoymiles HiBattery HB-4020-X is a compact all-in-one storage system for the easy use and storage of solar power. The base unit combines an integrated LFP battery with an inverter, multiple MPPT inputs and modern communication in one device. This allows solar modules to be connected directly and the generated electricity to be used efficiently in the household or stored temporarily for later consumption.
Thanks to its modular expandability, the HiBattery HB-4020-X is ideal for residential PV applications where self-consumption, easy installation and flexible storage capacity are the main priorities. Its robust design, high protection rating and intelligent control make the system a modern solution for decentralized energy supply.
When connected to the grid, the internal inverter is limited to 800 W and therefore complies with the legal requirements and limits for balcony solar systems in Germany. In off-grid operation, connected devices with up to 2500 W can even be supplied.
Product advantages:
- 4–16 kWh expandable solar storage
- Maximum safety included
- 2500 W backup power supply
- Smart app control
- 4,000 W input power via 4 MPPT inputs
Scope of delivery:
- 1x HiBattery HB-4020-X (battery "HB-4020-S" & inverter)
|
Consumer information on batteries and rechargeable batteries from energy storage systems:
Consumers are legally obliged to return used batteries and solar storage systems, regardless of battery type, manufacturer or seller. Batteries must not be disposed of with household waste! We are obliged to accept used batteries free of charge. After use, consumers can return/send batteries to our dispatch warehouse; see legal notice. However, reimbursement of return shipping costs is not possible. As an end consumer, you can usually also return batteries in household quantities to the collection points set up for this purpose by public waste disposal authorities. (e.g. municipal recycling centre) Batteries or rechargeable batteries containing harmful substances are marked with the symbol of a crossed-out wheeled bin. The crossed-out wheeled bin means that the battery must not be disposed of with household waste. |
|---|
Product information
| Max. Output Power (kW) | 2,5 |
|---|---|
| MPP trackers | 4 |
| Input voltage range (V) | 18-60 |
| Input current per MPP-Tracker (A) | 32 |
| Short-Circuit current per MPP-Tracker (A) | 40 |
| Backup/Emergency power capable | Yes |
| Zerez ID (VDE-AR-N 4105 / NS) | ZE-XLWY-7ZIA-0001 |
| Battery type | Lithium-iron-Phosphate |
| Storage capacity [kWh] | 4,0 |
| Storage-type | Accessories |
| Storage technology | Low Voltage |
| Dimensions | 520 x 384 x 199 mm |
| Manufacturer´s product warranty | 10 Years |
| Manufacturer link | www.hoymiles.com |
