BYD

Inverters from BYD

BYD inverters offer maximum efficiency, seamless storage integration and maximum reliability with emergency power function. BYD is a leading global technology group from China with a focus on renewable energies.

BYD inverters – the new generation for smart energy

Maximum efficiency, hybrid capability, and perfect compatibility with BYD batteries—the new BYD inverters are powerful, future-ready, and user-friendly.

What can BYD inverters do?

BYD’s inverter models were developed specifically to meet modern requirements for energy independence, efficiency, and intelligent control. They offer a wide range of features:

  • Hybrid technology: Simultaneous management of PV power, battery storage, and grid connection
  • Compatibility: Optimized interaction with the BYD Battery-Box HVE / HVB
  • AC and DC coupling: Flexible integration into new or existing PV systems
  • Smart Grid ready: Supports grid management and feed-in control
  • Load management & backup power capability

Power range and battery compatibility overview

Single-phase BYD inverters

Model / AC output MPP current (A) MPPT / strings per MPPT Battery system Warranty

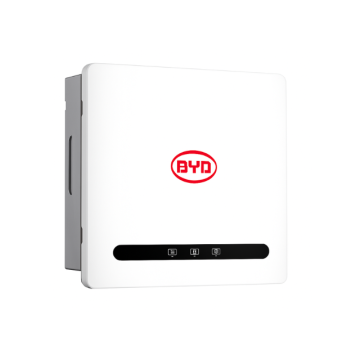

SH3K / 3 kW  max. 16 2 / 1 BYD HVB 5.9 - 23.7 min. 5 years*
SH3.7K / 3.7 kW  max. 16 2 / 1
SH4.6K / 4.6 kW  max. 16 2 / 1
SH5K / 5 kW  max. 16  2 / 1
SH6K / 6 kW  max. 16 2 / 1

Three-phase BYD inverters

Model / AC output MPP current (A) MPPT / strings per MPPT Battery system Warranty
TH5K / 5 kW max. 18 2 / 1 BYD HVB 11.8 - 29.6 min. 5 years*
TH6K / 6 kW max. 18 2 / 1

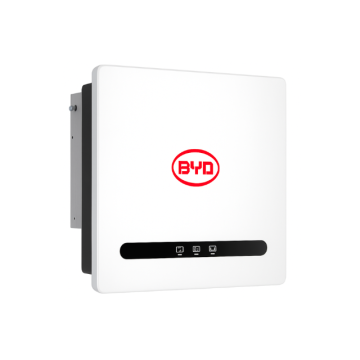

TH8K / 8 kW max. 18 2 / 1
TH10K / 10 kW max. 18 2 / 1
TH12K / 12 kW max. A:32 B:1 2 / A:2 B:1
TH15K / 15 kW max. A:32 B:18 2 / A:2 B:1

*Warranty can be extended to 10 years if the following requirements are met:

  • Registration in the BYD portal within 12 months of the production date or within 6 months of commissioning
  • System installation by a certified BYD installer
  • Operation of the inverter with a BYD battery

Benefits for the user

  1. Maximum self-consumption
    Thanks to intelligent control and hybrid functionality, as much self-generated solar power as possible is used—reducing electricity costs sustainably.
  2. Seamless battery integration
    Perfect coordination with BYD battery storage systems enables efficient and stable storage—with high cycle stability and safety.
  3. Flexibility for any system size
    From single-family homes to commercial operations—BYD offers multiple power classes for a wide range of applications.
  4. User-friendly operation
    Via app or web portal, users can conveniently monitor, analyze, and control their system—even remotely.
  5. Backup power & emergency supply
    Some models offer integrated backup functions for reliable supply during power outages—ideal for sensitive loads.

Conclusion
The new BYD inverters combine cutting-edge technology with intelligent control and maximum efficiency. If you’re planning or optimizing a PV system with battery storage, you’ll find a powerful and sustainable solution here—especially when paired with the proven BYD Battery-Box systems.
