Rated AC power: 8,000 W |
Max. DC input current per string: 18 A |
Phases: 3 |
Number of MPPTs: 2 |
Dimensions: 577 x 537 x 206 mm |
Scope of delivery: Inverter, Smart Meter |
5-year manufacturer warranty |
Zerez ID: ZE-T0P5-CF8Z-0003
- SKU:
- BYD-Power-Box-TH8K-E
Description

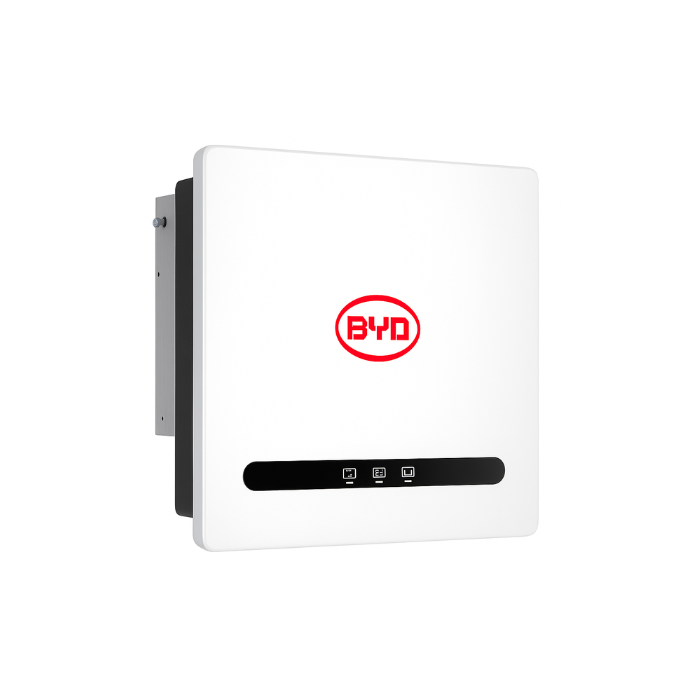

BYD Hybrid Inverter Power-Box TH8K
The BYD Power-Box TH5–15K series includes powerful three-phase hybrid inverters with rated AC outputs from 5 kW to 15 kW and is perfectly matched to BYD Battery-Box high-voltage storage systems (HVE and HVB). They enable flexible use in grid-connected PV systems with battery storage, offer an emergency power function (EPS) in the event of a grid outage, and feature intelligent interfaces for load and energy flow management. These units are ideal for larger residential buildings and commercial installations that focus on high self-consumption and security of supply.
Product benefits:
- Energy management
- Robust
- High-performance backup
- Smart O&M
- Compact design
- Grid compatibility & emergency power option
- Reliability & warranty
Compatible with:
- BYD Battery-Box HVE
- BYD Battery-Box HVB 11.8 - 29.6 kWh
Product information
| Inverter-type | Hybrid Inverter |
|---|---|
| Phases | 3-Phase |
| Max. Output Power (kW) | 8,0 |
| MPP trackers | 2 |
| Input voltage range (V) | 160-950 |
| Input current per MPP-Tracker (A) | 18 |
| Short-Circuit current per MPP-Tracker (A) | 25 |
| Backup/Emergency power capable | Yes |
| Integrated DC surge protection | Yes |
| Zerez ID (VDE-AR-N 4105 / NS) | ZE-T0P5-CF8Z-0003 |
| Manufacturer´s product warranty | 5 Years |
| Manufacturer link | https://www.bydbatterybox.com |
Delivery
| Germany | Delivery time is about 2 to 10 working days. |
|---|---|
| EU Country | Delivery time is about 5 to 15 working days. |
Downloads
