Rated AC power: 27 000 W |
Max. DC input current per tracker: 47,7 A |
Phases: 3 |
Number of MPP trackers: 1 |
Dimensions: 725 x 510 x 225 mm |
Scope of delivery: inverter, integrated WiFi module |
2-year manufacturer warranty |
Zerez ID: ZE-N29R-2I5F-0001
- SKU:
- 3000200166
€2,515.00
Incl. 0% VAT
Description

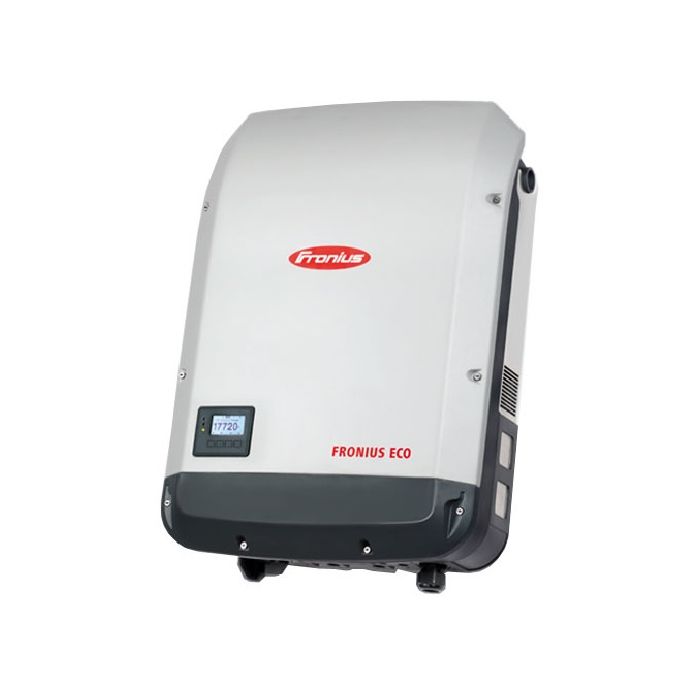

Inverter Fronius Eco 27.0-3-S – incl. display & Datamanager
THE COMPACT PROJECT INVERTER FOR MAXIMUM YIELDS.
With the three-phase Fronius Eco in the 25.0 and 27.0 kW power classes, the requirements of large-scale PV systems are met perfectly. Thanks to its low weight and the SnapINverter mounting system, the transformerless device enables quick and easy installation indoors and outdoors.
With IP66 protection, this inverter series sets new standards. In addition, thanks to integrated, all-pole string fuse holders and optional DC surge protection, there is no longer any need to use string combiner boxes.
Product features:
- SnapINverter technology
- Integrated data communication
- Dynamic Peak Manager
- Smart Grid Ready
- Zero export
Product information
| Inverter-type | Inverter |
|---|---|
| Phases | 3-Phase |
| Max. Output Power (kW) | 27,0 |
| MPP trackers | 1 |
| Input voltage range (V) | 580-1000 |
| Input current per MPP-Tracker (A) | 47,7 |
| Short-Circuit current per MPP-Tracker (A) | 71,6 |
| Backup/Emergency power capable | No |
| Integrated DC surge protection | No |
| Zerez ID (VDE-AR-N 4105 / NS) | ZE-N29R-2I5F-0001 |
| Dimensions | 725 x 510 x 225 mm |
| Manufacturer´s product warranty | 2 Years |
| Herstellerlink | http://www.fronius.com/ |
Delivery
| Germany | Delivery time is about 2 to 10 working days. |
|---|---|
| EU Country | Delivery time is about 5 to 15 working days. |
Downloads
Wechselrichter Fronius Eco 25.0 27.0 Datenblatt DE.pdf
Wechselrichter_Fronius_Eco_25.0_27.0_Datenblatt_DE.pdf
