Description

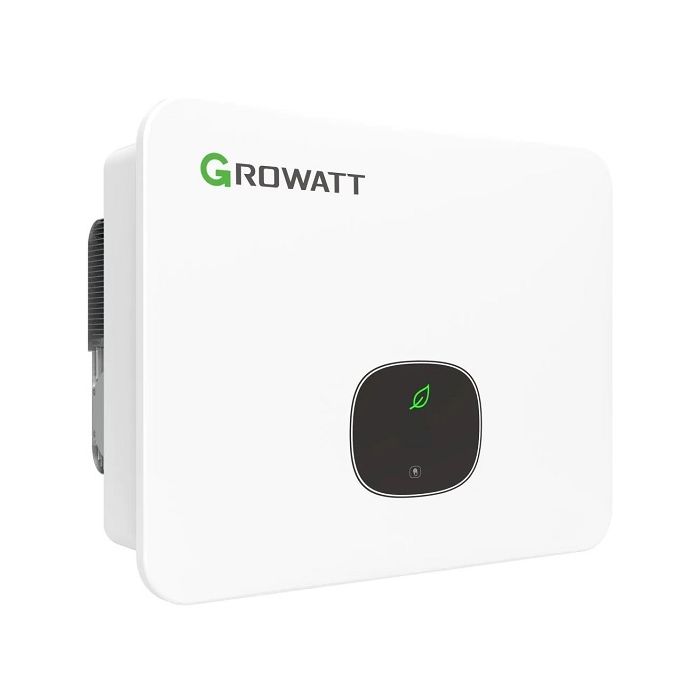

Growatt MID 20KTL3-XH Hybrid Inverter
The Growatt MID 20KTL3-XH 20 kW hybrid inverter gives your commercial PV system greater independence by increasing on-site consumption of solar power.
Efficiency & key figures: MID 20KTL3-XH at a glance
- The inverter’s maximum AC output is 20,000 W. The unit is compatible with PV systems up to a maximum size of 40 kWp. Its maximum efficiency is 98.75%. The European efficiency of 98.5% takes typical European weather conditions into account.
Functions and features of your Growatt inverter
- Maximum power is supported by 2 MPP trackers. The MID 20KTL3-XH is supplied without a smart meter. It can be used for self-consumption or as a full feed-in inverter.
Black-start capable: power supply even during an outage
- With the Growatt SYN-100-XH-30 Backup Box, the inverter is black-start capable. This is not included in the scope of delivery and must be purchased separately. In the event of a power outage, the phases or loads connected to the Backup Box will continue to be supplied with power from the PV system or the connected battery storage.
Product information
| Inverter-type | Hybrid Inverter |
|---|---|
| Phases | 3-Phase |
| Max. Output Power (kW) | 20,0 |
| MPP trackers | 2 |
| Input voltage range (V) | 160-1000 |
| Input current per MPP-Tracker (A) | 32 |
| Short-Circuit current per MPP-Tracker (A) | 40 |
| Backup/Emergency power capable | with accessories |
| Integrated DC surge protection | Yes |
| Zerez ID (VDE-AR-N 4105 / NS) | ZE-120Z-37KG-0006 |
| Dimensions | 580 x 435 x 230 mm |
| Manufacturer´s product warranty | 10 Years |
| Herstellerlink | https://www.ginverter.com/ |
