Data transfer unit that collects information and data from PV micro inverters via a 2.4 GHz wireless solution
The DTU is compatible with the Hoymiles HMS series as well as the HMT series.
Power supply: 5 V / 2 A
Maximum distance (open field): 400 m
WiFi standard: 802.11 b/g/n
Power consumption: typ. 1.5 W / max. 3.0 W
Ambient temperature: -20°C to +55°C
Dimensions: 200 x 101 x 29 mm (without antennas)
- SKU:
- 1-21-015425
€143.00
Incl. 0% VAT
Description

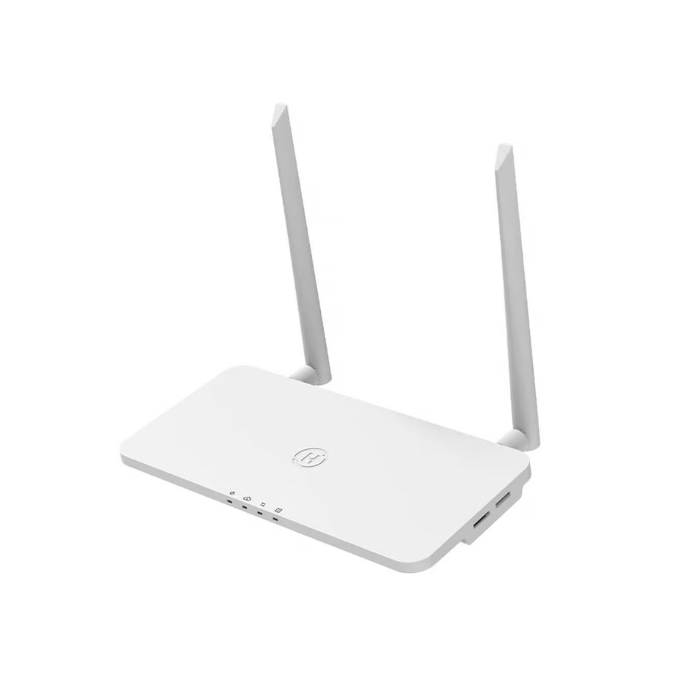

Hoymiles DTU-Pro-S WiFi
The Hoymiles gateway DTU-Pro is a data transfer unit that collects information and data from PV micro inverters via a 2.4 GHz wireless solution and transmits them to the S-Miles Cloud, the Hoymiles monitoring platform, via various communication options such as Ethernet or WiFi.
The DTU is compatible with the Hoymiles HMS series as well as the HMT series.
The DTU-Pro data transfer unit has a monitoring capacity for up to 99 solar modules. This makes the system suitable even for more complex PV installations. Users can quickly and easily view data and alarms at module level. Remote operation and remote maintenance of the PV system can be conveniently carried out anytime and from anywhere via the Hoymiles S-Miles Cloud.
Product advantages:
- Stable communication with micro inverters of the HMS and HMT series
- Supports RS485 and Ethernet port for communication with peripheral devices
- Module-level monitoring and data storage
- Local configuration with S-Miles Toolkit
- Support for remote O&M, including remote upgrades and parameter settings
- Smart zero-export control and power export limitation
- Monitoring of PV generation and load consumption
Product information
| Inverter-type | Accessories |
|---|---|
| Dimensions | 200 x 101 x 29 mm |
| Manufacturer´s product warranty | 3 Years |
| Herstellerlink | www.hoymiles.com |
Delivery
| Germany | Delivery time is about 2 to 10 working days. |
|---|---|
| EU Country | Delivery time is about 5 to 15 working days. |
