AC rated power: 20 000 W | Max. DC input current per string: 24 A | Phases: 3 | Number of MPP trackers: 3 | Dimensions: 762 x 728 x 266 mm | Scope of delivery: Inverter | 5-year manufacturer warranty | ZEREZ ID: ZE-7ZWF-O3PU-0003
- SKU:
- 3000100458
€1,910.00
Incl. 0% VAT
Description

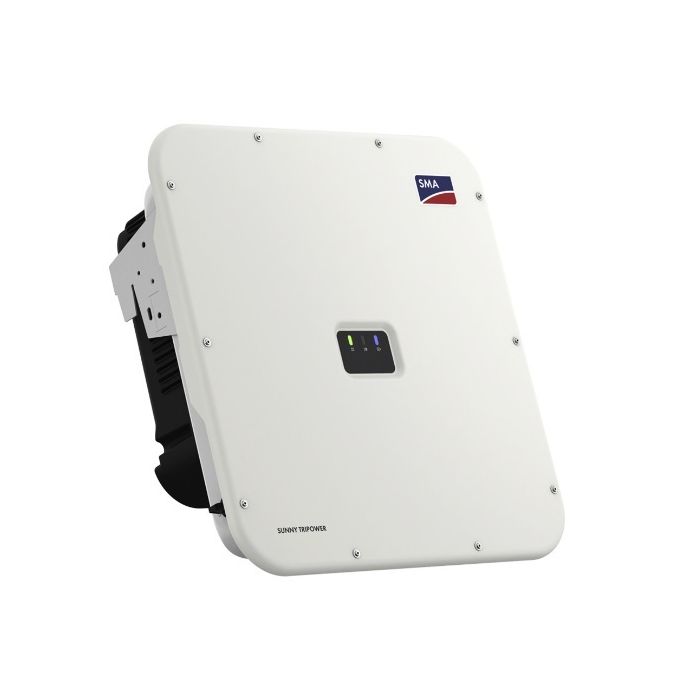

SMA Sunny Tripower X 20 STP 20-50 Inverter
The new Sunny Tripower X is an innovative system solution for commercial and larger residential PV systems. The integrated System Manager function with direct access to Sunny Portal powered by ennexOS monitors up to five SMA inverters and one Energy Meter. This enables dynamic control of active and reactive power via SMA Dynamic Power Control. Thanks to the wide input voltage range and high input current capability, it is compatible with high-performance PV modules of the latest generation. The new enclosure design ensures efficient cooling of the electronic components and therefore maximises the service life of the Sunny Tripower X.
Product benefits:
- Integrated System Manager
- Safety included
- Maximum yields
- More flexibility
Product information
| Inverter-type | Inverter |
|---|---|
| Phases | 3-Phase |
| Max. Output Power (kW) | 20,0 |
| MPP trackers | 3 |
| Input voltage range (V) | 150-1000 |
| Input current per MPP-Tracker (A) | 24 |
| Short-Circuit current per MPP-Tracker (A) | 37,5 |
| Backup/Emergency power capable | No |
| Integrated DC surge protection | No |
| Zerez ID (VDE-AR-N 4105 / NS) | ZE-7ZWF-O3PU-0003 |
| Dimensions | 762 x 728 x 266 mm |
| Manufacturer´s product warranty | 5 Years |
| Herstellerlink | https://www.sma.de/ |
Delivery
| Germany | Delivery time is about 2 to 10 working days. |
|---|---|
| EU Country | Delivery time is about 5 to 15 working days. |
