Rated power: 470 Wp |
Cell type: N-type i-TOPCon |
Module design: glass-glass |
Colour: black frame |
Connector: TS4/MC4 EVO2 |
Dimensions: 1762 x 1134 x 30 mm
- SKU:
- TSM-470-NEG9R.28
€78.00
minimum order quantity: 10 pcs.
Incl. 0% VAT
Description

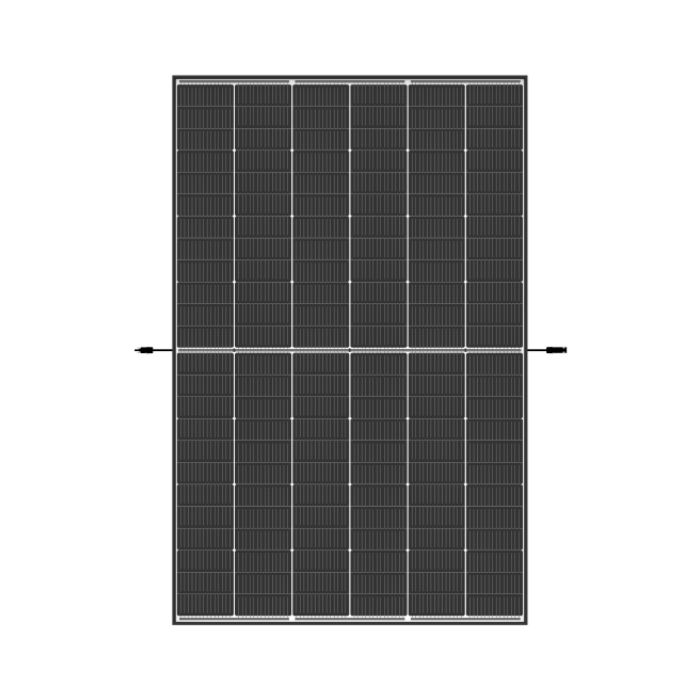

Trina Vertex S+ TSM-470-NEG9R.28, N-type i-TOPCon, glass-glass, black frame
Trina is launching the new Vertex S+ PV module series. As Trina’s first product in this series, the Vertex S+ already comes with a 25-year product warranty at launch. This new high-performance module delivers up to 470 W output with a compact footprint. It features multi-busbar technology, which improves light capture, reduces series resistance and enhances current collection. This double-glass module comes with a 30-year performance warranty. The Vertex S+ series is flexible in use and designed for both residential and commercial applications.
Product benefits:
- Excellent resistance to fire and harsh environmental conditions
- N-type technology with 1% degradation in the first year and 0.4% in years 2–30
- Multi-busbar technology
- 30 mm frame height, very stable
- System design and planning exactly as before
- Hail resistance class 3
Product information
| DC-Power (Wp) | 470 |
|---|---|
| Module Efficiency | 23,5% |
| Current Impp (A) | 10,20 |
| Open-Circuit Voltage (V) | 54,6 |
| Rated Voltage (V) | 46,1 |
| Panel structure | Glas-glas |
| Panel colour | Black frame |
| Connector type | TS4 / MC4-Evo2 |
| Dimensions | 1762 × 1134 × 30 mm |
| Manufacturer´s product warranty | 25 Years |
| Manufacturerer´s performance warranty | 30 Years |
| Herstellerlink | https://www.trinasolar.com/de |
Delivery
| Germany | Delivery time is about 2 to 10 working days. |
|---|---|
| EU Country | Delivery time is about 5 to 15 working days. |
